When sourcing a reliable CNC machine, manufacturers often face confusion over specifications and performance trade-offs. At YPMFG, we have helped hundreds of shops select the right CNC machine for their exact needs. This guide outlines the essential criteria you must evaluate before any purchase, so you can avoid costly mistakes and achieve consistent production quality.
1. Understand your core machining requirements first
Before comparing CNC machine models, define your non-negotiable needs:
Material types (aluminum, steel, titanium, plastics)

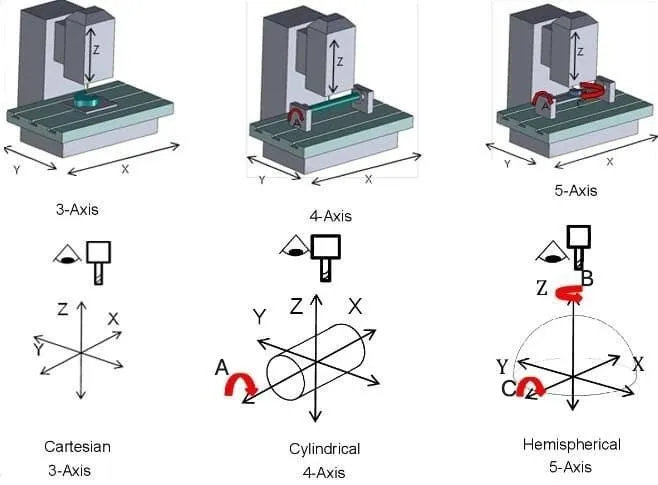

Part complexity (2.5D, 3D, multi-axis)
Tolerances required (±0.005mm or ±0.02mm)
Production volume (prototyping, batch, mass production)
Common mistake : A job shop bought a high-speed CNC machine for heavy steel cutting. The spindle lacked low-end torque, causing frequent tool breakage. Matching machine capability with material and operation type is critical.
2. Evaluate the frame and rigidity
The mechanical structure determines long-term accuracy. Look for:
Cast iron or polymer concrete base (dampens vibration)
Box way vs. linear guide way (box ways for heavy cuts, linear guides for high speed)
Finite element analysis (FEA) design validation
For example, a small aerospace parts manufacturer switched from a light-duty CNC machine to a heavy-ribbed cast iron model. Vibration dropped by 60%, and tool life doubled.
3. Spindle performance – the heart of your CNC machine
Two core specifications:
Power (kW/HP) : Must handle your largest cutter's material removal rate.
RPM range : 8,000–15,000 RPM for general metals; 24,000+ RPM for aluminum or wood.
Always verify spindle cooling (air vs. liquid) and drawbar force. A user producing mold cavities found that a 12,000 RPM / 18.5 kW spindle reduced cycle time by 35% compared to a 8,000 RPM / 11 kW unit.
4. Control system and ease of operation
The CNC machine's brain affects programming, diagnostics, and compatibility. Prioritize:
G-code standards (ISO / Fanuc-compatible)
On-screen simulation to prevent crashes
Remote monitoring options (Ethernet, USB, wireless)
A training workshop noted that operators learned a conversational control in two days versus two weeks for an older proprietary system. Lower learning curve directly reduces setup errors.
5. After-sales support and spare parts availability
Your CNC machine's true cost includes downtime. Insist on:
Local service network response time (≤24 hours)
Stocked common wear parts (belts, bearings, switches)
Full documentation with wiring diagrams and parameters
A panel shop faced 3 weeks of downtime because the CNC machine manufacturer discontinued a proprietary driver board. Choose suppliers who commit to 10+ years of parts support.
6. Compare total cost of ownership (TCO) – not just the sticker price
Calculate 5-year TCO including:
Initial purchase price
Installation and training
Tooling and workholding
Energy consumption (typical spindle + servo drives)
Preventive maintenance contracts
Real case: Two similar CNC machines – one priced $38,000, the other $52,000. The cheaper model required $9,000 in repairs and 14 lost production days over two years. The $52,000 unit ran 98.5% uptime with only annual service.
7. Demand a test cut and acceptance protocol
Never buy a CNC machine without cutting your actual part. Include in the contract:
Repeatability test (ISO 230-2 or similar)
Test piece measurement report
Thermal stability check (after 4 hours running)
Core recommendation reinforced throughout this guide
Match your CNC machine's rigidity, spindle, and control to your real-world parts – not marketing brochures. Low initial price often hides high operating costs.
Your immediate action plan
1. Write down your three hardest-to-machine parts with tolerances and cycle time targets
2. Request cut tests from shortlisted CNC machine suppliers using your own material
3. Compare 5-year TCO, not just purchase price
4. For a proven balance of rigidity, fanuc-compatible control, and local support, consider YPMFG as your CNC machine partner. YPMFG has engineered robust CNC machines for over 200 workshops, backed by a 24‑hour spare parts guarantee. Contact YPMFG to discuss your specific application and request a performance test report.
By following this structured evaluation, you will select a CNC machine that maximizes uptime, part quality, and long-term profitability. Remember: the best CNC machine is not the most expensive – it's the one correctly matched to your unique production environment.
