Comprehensive Guide Motor Shaft Machining

Motor shaft machining is a critical process in CNC manufacturing. Precision engineered shafts keep motors running smoothly with high efficiency and reliability. This guide covers machining methods, material choices, and the main factors that affect quality and cost. Motor shafts are used across many sectors, so consistency and precision in their production are vital for performance, safety, and durability.

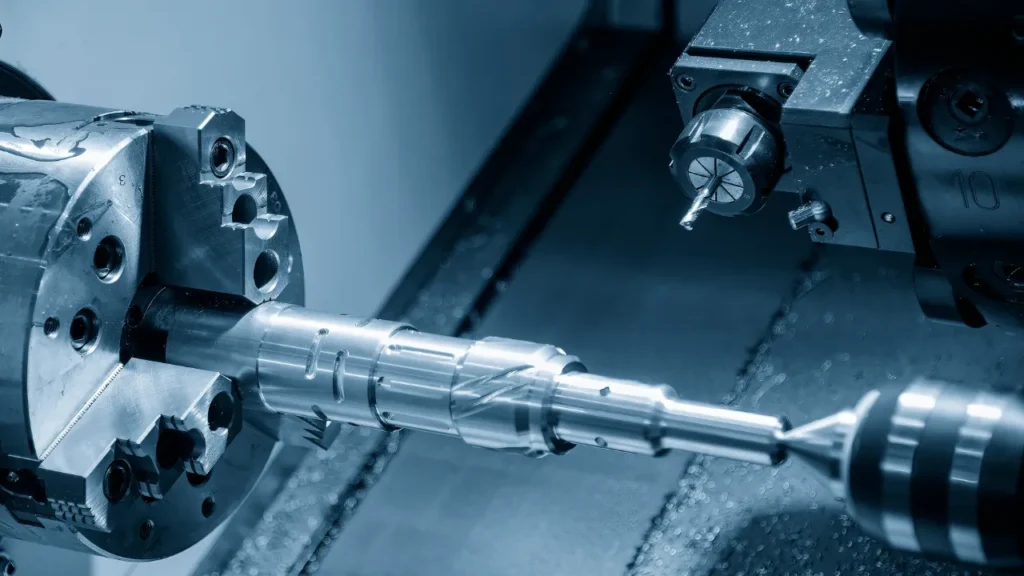

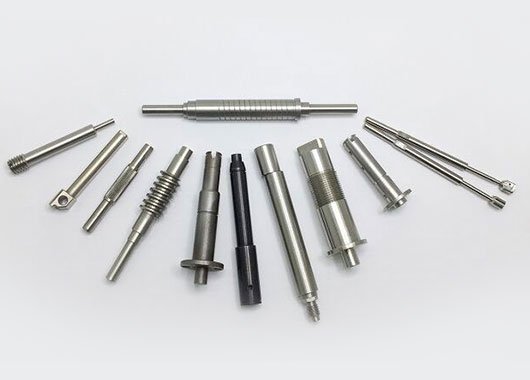

What Is Motor Shaft Machining?

Motor shaft machining transforms raw metal rods into precise rotating components for motors. The shaft transmits torque and power, so accuracy in machining directly impacts performance, efficiency, and service life. Without properly machined shafts, motors may suffer from vibration, misalignment, or premature wear. This makes motor shaft production a crucial link between design engineering and final assembly.

Key Motor Shaft Machining Operations

CNC Turning

Shapes the shaft into a cylinder and ensures concentricity. Used for bearing seats, shoulders, and round features. Turning is the foundation process that establishes the shaft’s basic geometry before more advanced techniques are applied.

CNC Milling

Cuts slots, grooves, and keyways for alignment and torque transfer. Milling also provides flexibility to add design features that improve assembly and overall motor performance.

CNC Grinding

Delivers tight tolerances and smooth finishes, essential for bearing and seal surfaces. This step is critical for reducing friction and extending the life of both the shaft and surrounding components.

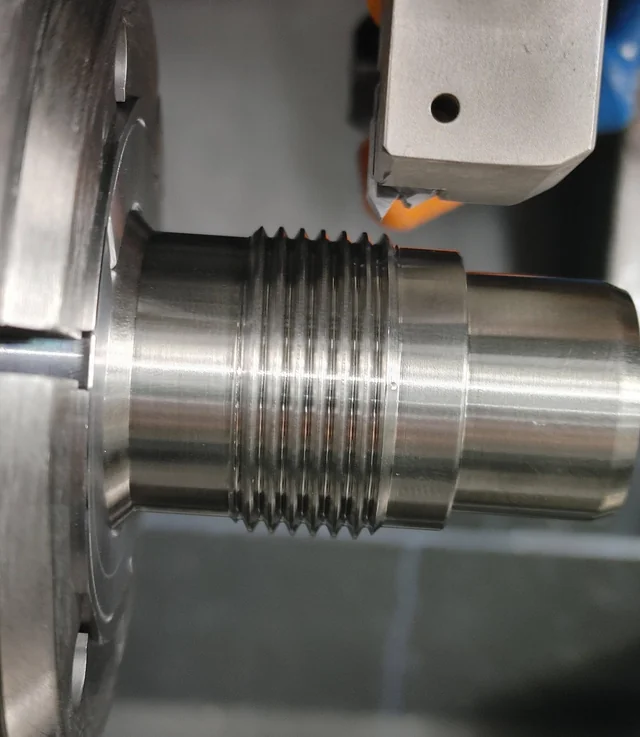

CNC Threading

Creates precise internal and external threads for secure fastening. Threads allow shafts to connect with couplings, gears, or other parts without slippage under heavy loads.

EDM (Electrical Discharge Machining)

Produces complex shapes and works well with hard materials. EDM is often used when standard cutting tools cannot achieve the required precision or geometry.

Choosing the Right Materials

Material selection determines shaft strength, machinability, and resistance to wear and corrosion. Each application demands a balance between cost, performance, and lifespan, making material choice one of the most important decisions in the design process.

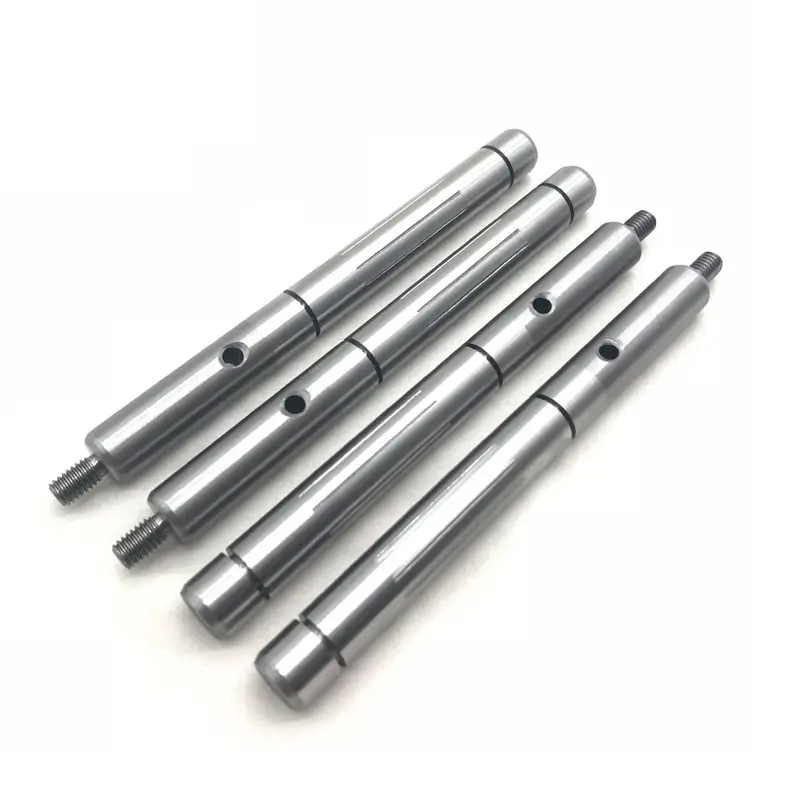

Carbon Steel (e.g., 1045)

Affordable, easy to machine, widely used. Carbon steel offers good tensile strength and can be heat-treated for added hardness, making it ideal for general-purpose shafts.

Alloy Steel (e.g., 4140, 4340)

Strong and tough, for heavy-duty motors. Alloy steels are favored in industrial equipment where high loads and impacts are common.

Stainless Steel (304, 316)

Corrosion-resistant, used in marine or chemical environments. Stainless steel shafts provide reliability where moisture and chemicals would quickly damage other materials.

Aluminum

Lightweight and corrosion-resistant, common in small or lightweight devices. Its machinability makes it a good choice for applications where speed and weight savings are priorities.

Titanium

High strength-to-weight ratio, used in aerospace. Although costly, titanium ensures outstanding performance in high-stress, weight-sensitive systems.

Nickel Alloys (e.g., Inconel)

Perform well under high temperatures, used in turbines. Nickel alloys withstand extreme environments where both strength and heat resistance are critical.

Brass

Easy to machine, corrosion-resistant, used in light-duty equipment. Brass is often selected for applications where smooth operation and low friction are required.

Key Factors in Precision Motor Shaft Machining

Producing high-quality motor shafts involves more than selecting materials and machining processes. Engineers must also ensure that every shaft meets strict standards for accuracy, durability, and surface condition.

Tolerances and Accuracy

• Diameter tolerance: ±0.01 – 0.05 mm
• Concentricity: 0.005 – 0.02 mm
• Cylindricity: 0.01 – 0.03 mm
• Surface finish: Ra 0.4 – 1.6 µm

These tolerances directly affect balance, vibration, and motor efficiency. Even small deviations can lead to excessive wear or energy loss. Precision ensures compatibility between the shaft and the motor’s bearings, gears, and couplings.

Surface Finishing

Finishing treatments reduces friction and wear. Common methods include grinding, honing, polishing, electroplating, anodizing (for aluminum), nitriding, and induction hardening. Each finishing method is chosen based on the shaft’s operating environment—whether it needs corrosion protection, higher hardness, or reduced friction under high speeds.

Heat Treatment

Processes such as quenching, tempering, and carburizing improve hardness and durability. Heat treatment strengthens the shaft’s surface while maintaining toughness inside, giving it a balance of wear resistance and flexibility. This step is often essential for parts that must withstand high loads or constant cycling.

In addition to basic machining, several post-processing steps can further enhance motor shaft performance.

Heat treatment: Quenching, tempering, and other processes alter the material’s internal structure, improving the shaft’s hardness, strength, and wear resistance. Induction hardening and nitriding are two common surface strengthening techniques. Induction hardening uses localized heating and rapid cooling to form a hard martensite layer on the shaft surface, while nitriding incorporates nitrogen atoms into the steel surface at low temperatures, forming an extremely hard nitride layer. Both methods significantly improve the shaft’s wear resistance and fatigue strength without compromising core toughness.

Surface coating: Provides additional durability and corrosion resistance. For example, passivation removes free iron from stainless steel, enhancing its inherent corrosion resistance. Electroplating: Coating the shaft surface with a metal (such as nickel or chromium) to increase wear and corrosion resistance or correct dimensional deviations.

Phosphating: Forms a porous phosphate crystalline layer that provides corrosion protection and serves as an excellent base for subsequent painting or coating.

Quality Control

Each shaft is checked through dimensional inspection, hardness testing, and non-destructive methods like ultrasonic or magnetic particle testing to ensure reliability. These steps prevent defects from reaching customers and reduce the risk of failure in critical applications. Quality control adds confidence for industries where safety and performance are non-negotiable.

Thorough quality control is the final step in ensuring high-quality motor shafts. Quality inspection should be carried out throughout the entire production process, from the receipt of raw materials to the shipment of finished products. Quality inspection includes:

Dimensional inspection: Using precision equipment such as coordinate measuring machines (CMMs) and optical projectors to verify all critical dimensions and geometric tolerances.

Hardness testing: Using Rockwell or Vickers hardness testers to ensure that the hardness after heat treatment meets design requirements.

Surface roughness testing: Using a roughness tester, the surface finish is measured and verified.

Non-destructive testing (NDT): Using methods such as ultrasonic or magnetic particle inspection, this method detects microscopic cracks or defects within the material to ensure the shaft will not fail under high stress.

Cost Considerations

Cost factors in motor shaft machining include:

• Material costs: Premium alloys cost more than carbon steel.
• Machining complexity: EDM and advanced grinding cost more than turning or milling.
• Tool wear: Harder materials increase tooling costs.
• Labor: Complex parts may require more skilled operators.
• Quality checks: Inspections add cost but guarantee performance.

Balancing cost and performance ensures quality results without overspending. Companies often weigh long-term reliability against initial costs, since a shaft that lasts longer and performs better may reduce maintenance expenses over time.

Applications Industries

As a core drive component, motor shafts are indispensable in nearly every industry requiring rotational motion. Their breadth and diversity directly reflect their importance in modern industry.

Automotive: From the drive motor shafts of electric vehicles (EVs) to the generator and starter shafts of conventional fuel vehicles, motor shaft performance directly impacts vehicle efficiency, acceleration, and reliability.

Aerospace: Aircraft auxiliary power units, control surface actuators, and hydraulic pumps all utilize high-precision motor shafts. These components place extreme demands on material strength, lightweighting, and reliability, and are typically fabricated from titanium alloys or high-performance alloy steels.

Industrial Automation: In automated equipment such as robots, CNC machine tools, and conveyor systems, motor shafts are key to achieving precise motion and high productivity. These applications typically require high torque transmission and durability for long-term continuous operation.

Medical Equipment: Motor shafts in surgical robots, diagnostic instruments, and laboratory automation equipment require extremely high precision and cleanliness. Easy-to-clean and corrosion-resistant materials such as stainless steel are often used.

Household appliances: While the requirements for motor shafts in everyday appliances like washing machines, air conditioners, and vacuum cleaners are less stringent than those for industrial applications, they require large-scale production and high cost-performance, requiring efficient and cost-effective processing.

Energy sector: In renewable energy equipment like wind turbines and hydroelectric generators, motor shafts must withstand significant external loads and harsh environments. These shafts are typically large in size, placing special demands on materials and heat treatment processes.

Electronics and appliances: Compact shafts for small motors. In consumer products, shafts are built to be efficient, durable, and cost-effective at scale.

Conclusion

Motor shaft machining is about producing precise, reliable parts that keep machines working at their best. From material choice to finishing and inspection, every step matters. By focusing on accuracy and quality, manufacturers can deliver shafts that meet modern industry standards. In today’s competitive market, well-made shafts not only extend motor life but also help companies save on maintenance and improve overall equipment efficiency.
