In modern manufacturing, CNC precision machining has become an essential process for producing high-quality parts with extreme accuracy. From aerospace turbine blades to custom medical implants, industries increasingly rely on CNC precision machining to meet demanding requirements. With its combination of computer automation, tight tolerances, and material versatility, CNC precision machining delivers unmatched consistency, efficiency, and reliability.
Table of Contents
1. What’s CNC Precision Machining?
CNC (Computer Numerical Control) precision machining is a highly sophisticated manufacturing process that transforms raw materials—metals, plastics, and composites—into precise, functional components. Unlike traditional manual machining, CNC precision machining relies on computer-controlled tools that follow pre-programmed instructions, ensuring every part is produced with remarkable accuracy, repeatability, and consistency.
This technology has become indispensable across industries where tolerances are tight, geometries are complex, and part performance is critical. Aerospace manufacturers depend on CNC machining for components like turbine blades and airframe brackets that must endure extreme conditions, while medical device companies rely on it to produce surgical implants and instruments with micron-level precision. By integrating CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software, engineers can design intricate parts digitally and seamlessly translate them into physical components with exceptional accuracy.
2. What are the Steps in the Precision Machining Process?
The CNC precision machining workflow is a combination of careful planning, advanced software, and precision machinery, ensuring high-quality output at every step.
2.1 Design and CAD Modeling
The process begins with creating a detailed 3D CAD model of the part. Engineers specify all dimensions, tolerances, surface finishes, and material types. Modern CAD software allows designers to simulate how the part will perform under real-world conditions, detect potential interference, and optimize the design for manufacturability. This reduces material waste, shortens production cycles, and ensures the final product meets stringent specifications.
2.2 CAM Programming
Once the design is finalized, CAM software generates the G-code or M-code needed to instruct the CNC machine. These machine-readable codes dictate the toolpaths, feed rates, spindle speeds, and depth of cuts, ensuring precision and efficiency. Advanced CAM software can simulate the machining process before production, identifying potential collisions or errors and minimizing the risk of costly mistakes.
2.3 Machine Setup
Before cutting begins, skilled operators install cutting tools, fixtures, and secure the workpiece on the machine bed. Proper setup is critical to ensure stability, alignment, and accurate machining. Any deviation during this step can compromise part quality, making precision calibration essential.
2.4 Machining Operations
CNC machines execute programmed operations with unmatched consistency. Depending on the machine type, operations may include milling, turning, drilling, or grinding. Multi-axis CNC machines—ranging from 3-axis to 5-axis systems—allow complex geometries and intricate features to be machined in a single setup, reducing production time and increasing accuracy.
2.5 Post-Processing and Finishing
After machining, parts often undergo post-processing to meet functional and aesthetic requirements. Processes such as deburring, polishing, sandblasting, or coating refine surface finishes and ensure the component is ready for assembly or end-use. High-quality finishing guarantees reliability and enhances part longevity.
3. Types of CNC Precision Machines
CNC (Computer Numerical Control) precision machines come in various types, each serving a unique purpose in manufacturing. They provide high accuracy, repeatability, and efficiency for diverse industrial applications. Below is a detailed overview of the main types of CNC machines.
Precision CNC machines come in a variety of types, each tailored to specific manufacturing needs. Selecting the right machine depends on part geometry, material, and desired precision.

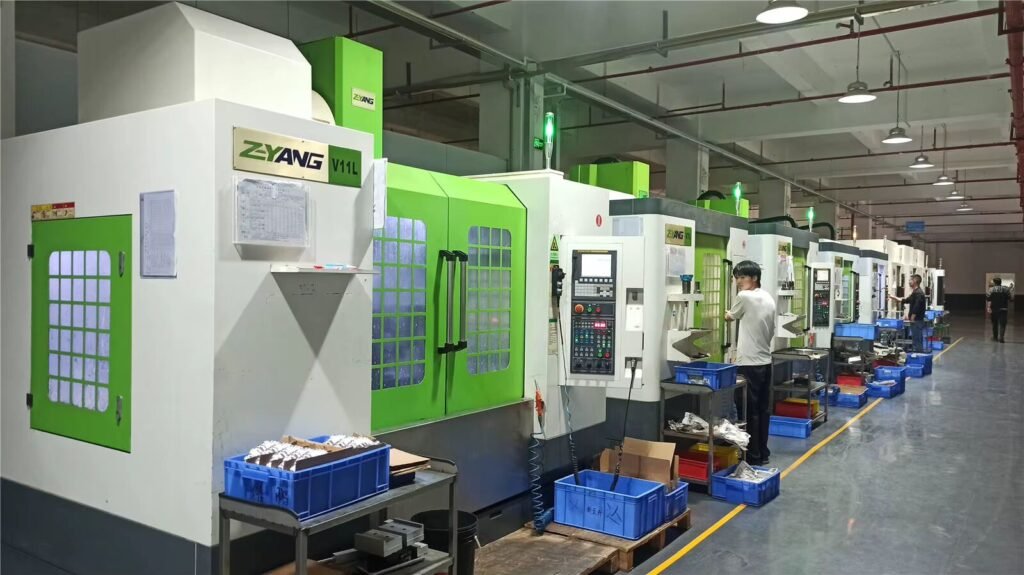

3.1 CNC Milling Machines
CNC milling machines use rotating cutting tools to remove material from a workpiece. Multi-axis milling machines allow the tool and workpiece to move simultaneously, producing flat surfaces, slots, pockets, and complex 3D features. Industries such as aerospace, automotive, medical, and electronics benefit from milling machines to produce highly detailed and reliable components. Automated tool changers and multi-axis capabilities make milling machines highly efficient for both prototyping and mass production.
3.2 CNC Turning and Lathes
CNC lathes rotate the workpiece while stationary cutting tools shape cylindrical or symmetrical components. Modern lathes often feature multi-tool turrets, enabling turning, milling, drilling, and threading in a single setup. Typical applications include shafts, crankshafts, bearings, threaded parts, and automotive components, where tight tolerances and smooth finishes are critical.
3.3 CNC Drilling Machines
CNC drilling machines specialize in precise hole-making, controlling drill speed, position, and feed to create deep holes, angled holes, and complex hole patterns. They are essential in mold fabrication, multi-hole mechanical components, and aerospace or automotive assemblies, where precision and repeatability are crucial.
3.4 Electrical Discharge Machines (EDM)
EDM uses controlled electrical sparks to remove material from a workpiece, particularly effective for hard metals and intricate shapes. This process avoids mechanical stresses, making it ideal for precision molds, aerospace components, medical devices, and miniature industrial parts that require exact detail and smooth finishes.
3.5 CNC Plasma and Laser Cutting Machines
These machines use plasma arcs or lasers to cut electrically conductive metals. They are capable of producing complex, precise shapes in steel, aluminum, copper, and other metals. Applications include sheet metal fabrication, construction steel cutting, decorative metalwork, and machinery components, where speed and accuracy are paramount.
3.6 CNC Grinding Machines
CNC grinding machines use rotating abrasive wheels to refine surfaces and achieve precise dimensions. They are ideal for precision gears, shafts, molds, and industrial tools, providing smooth finishes and micron-level accuracy for high-performance assemblies.
4. Materials Compatible with Precision CNC Machining
CNC precision machining can handle a wide range of materials, from general-purpose metals to high-performance alloys, from general-purpose engineering plastics to specialty polymers. Material selection typically considers a combination of mechanical properties (strength/stiffness/toughness/fatigue), corrosion and temperature resistance, dimensional and thermal stability, thermal and electrical conductivity, weight, machinability and surface quality, post-processing compatibility (anodizing, plating, heat treatment, passivation, etc.), compliance and certifications (FDA, ISO 10993, RoHS), and cost and delivery time.
Quick Material Selection Guide (matched by requirements):
High strength and lightweight → 7075 aluminum, Ti-6Al-4V
Extreme corrosion/temperature resistance → Inconel, Monel, 316
High thermal/electrical conductivity → Copper, Brass
Wear-resistant structural parts → 4140, POM, PEEK
Transparent appearance → PC, PMMA
Low-friction seals → PTFE/filled PTFE
General cost-effectiveness → 6061, ABS, 1018.
4.1 Metal Materials

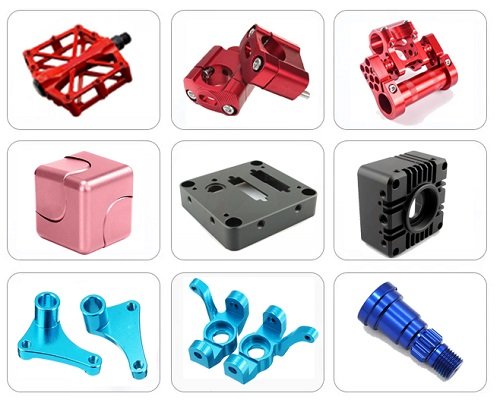

Aluminum Alloys (6061, 7075)
Features: Low density, high specific strength, good thermal conductivity, anodizable, suitable for high-speed cutting, and excellent surface finish.
6061: Versatile, weldable/formable, corrosion-resistant, and cost-effective, suitable for machine frames, housings, fixtures, and jigs.
7075: Significantly higher strength and hardness, suitable for load-bearing parts, corrosion resistance and weldability are inferior to 6061, resulting in a higher cost.
Processing Tips: Thin-walled parts are prone to deformation. Symmetrical material removal, step-by-step finishing, and stress relief are recommended. Surface roughness and chamfer consistency should be controlled before anodizing.
Best Applications: Model aircraft structures, sports equipment, high-end housings, and heat sinks.
Stainless Steel (304, 316, 17-4 PH)
Features: Corrosion resistance, stable strength, and excellent appearance. Machinability ranges from fair to difficult.
304: General-purpose corrosion resistance, commonly used in food and consumer products.
316/316L: Contains molybdenum, offers improved pitting/crevice corrosion resistance, making it a preferred choice for offshore and chemical applications.
17-4 PH: Precipitation-hardening type, boasts high strength and hardness after heat treatment, and excellent dimensional stability, making it suitable for high-load precision parts.
Processing Tips: Keep depth of cut low and maintain adequate cooling, use wear-resistant coatings on cutting tools, post-processing passivation/electrolytic polishing can significantly improve corrosion resistance and surface finish.
Best Applications: Medical devices, food contact parts, pumps and valves, and precision shafts.
Carbon Steel (1018, 4140)
1018 (mild steel): Easy to cut, low cost, suitable for turning and milling structural parts and prototypes, can be carburized/case-hardened.
4140 (chromium-molybdenum steel): High strength and wear resistance, can be tempered, and is suitable for gears, shafts, and clamps.
Processing Tips: Ensure adequate rust prevention after processing, leave excess stock before heat treatment, and arrange for finishing and stress relief after heat treatment.
Best Applications: Tooling, transmission parts, and load-bearing components.
Titanium Alloy (Ti-6Al-4V)
Features: Extremely high specific strength, corrosion resistance, and biocompatibility, density is only ~60% of steel.
Challenges: Poor thermal conductivity, prone to tool sticking, rapid tool wear, and high processing costs.
Processing Tips: Low speed and high feed, rigid clamping, and strong cooling, effective layering and chip breaking control.
Best Applications: Aerospace structures, medical implants, and lightweight load-bearing components.
Copper, Brass, and Bronze
Copper (Cu): Excellent electrical and thermal conductivity, suitable for electrodes, busbars, and heat sinks, prone to tool sticking, requiring sharp tools.
Brass (Cu-Zn): Excellent machinability and good surface finish, select low-lead or lead-free grades to meet regulations.
Bronze (Cu-Sn/Al, etc.): Wear-resistant and anti-friction, commonly used in bushings and guides.
Machining Tips: Use sharp cutting edges, small depths of cut/high speeds, use minimal lubrication when necessary to reduce chip adhesion.
Optimal Applications: Connectors, terminals, instrumentation, and wear-resistant mating parts.
High-Performance Alloys (Inconel, Monel, etc.)
Features: Maintains strength and stability in high-temperature/highly corrosive environments, commonly used in aircraft engines and chemical equipment.
Challenges: Difficult cutting, high thermal hardness, and rapid tool wear.
Machining Tips: Use small depths of cut, low cutting speeds, high-rigidity clamping, and stable tool paths, ensure adequate cooling and tool monitoring.
Optimal Applications: Turbine components, combustion chamber parts, and critical parts exposed to acidic and alkaline media.
4.2 Plastic Materials
Note: Thermal expansion and moisture absorption of plastics can affect tolerances and surface finish. Designs typically require wider tolerances than metals (e.g., ±0.05–0.10 mm), and consider post-processing stabilization.
ABS
Features: Easy to machine, good toughness, low cost, and a paintable/electroplatable surface (requires specialized grades).
Applications: Exterior parts, prototypes, fixture handles.
Processing Tips: Use sharp tools and proper cooling to avoid edge melting, inserts are recommended for threads.
Polycarbonate (PC)
Features: High transparency, high impact resistance, and better heat resistance than ABS.
Applications: Transparent covers, windows, and protective parts.
Processing Tips: Control stress to avoid cracking, chamfering and polishing can achieve an optical-quality appearance, avoid contact with strong solvents.
Nylon (PA, including PA6/PA66, oil-reinforced/glass-fiber reinforced)
Features: Strong, self-lubricating, and wear-resistant, high water absorption can cause dimensional changes.
Applications: Gears, slides, and bearing seats.
Processing Tips: Tolerance-sensitive parts should be processed dry, and dimensional compensation should be adjusted according to the operating humidity. Reinforced grades (GF) are stiffer but more brittle.

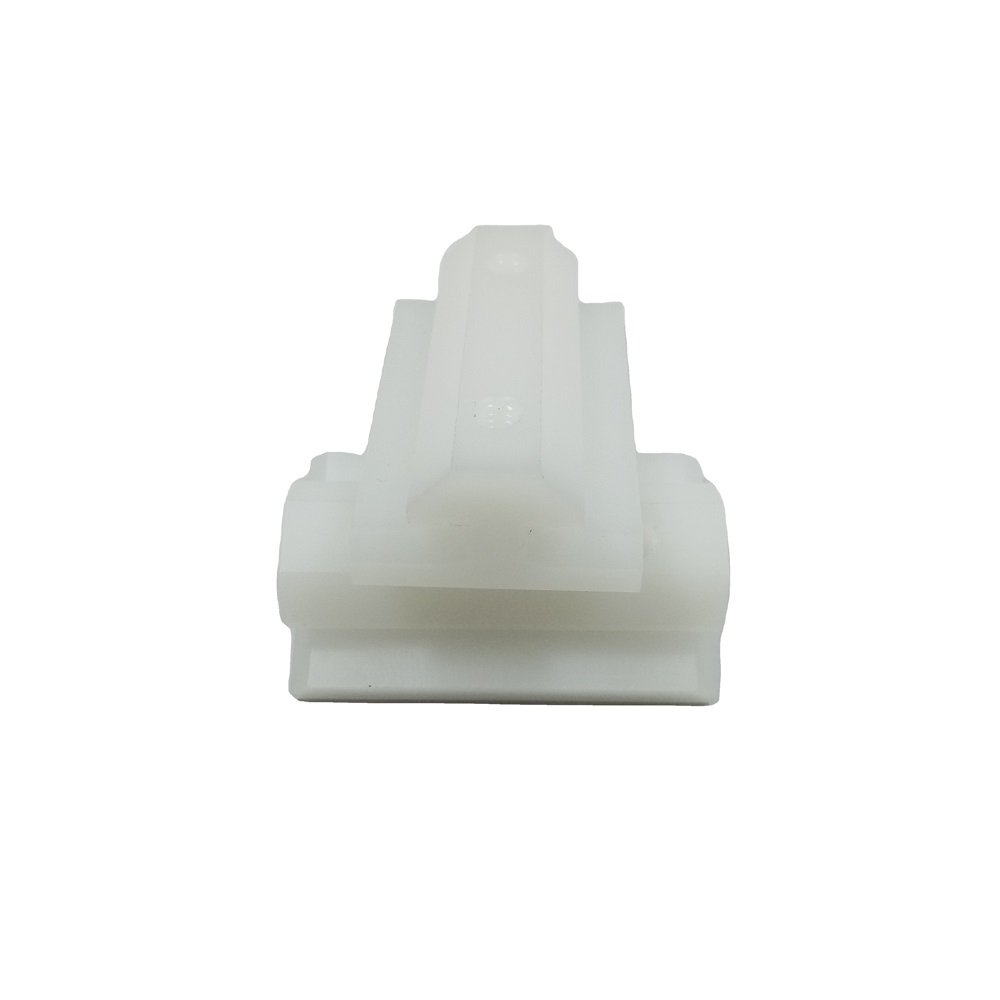

POM (Acetal)
Features: Dimensionally stable, low friction, wear-resistant, good machinability, and sharp edges.
Applications: Precision sliding/rotating parts, jig base blocks.
Processing Tips: Control heat buildup to prevent warping, excellent deburring performance, suitable for tight-fit structures.

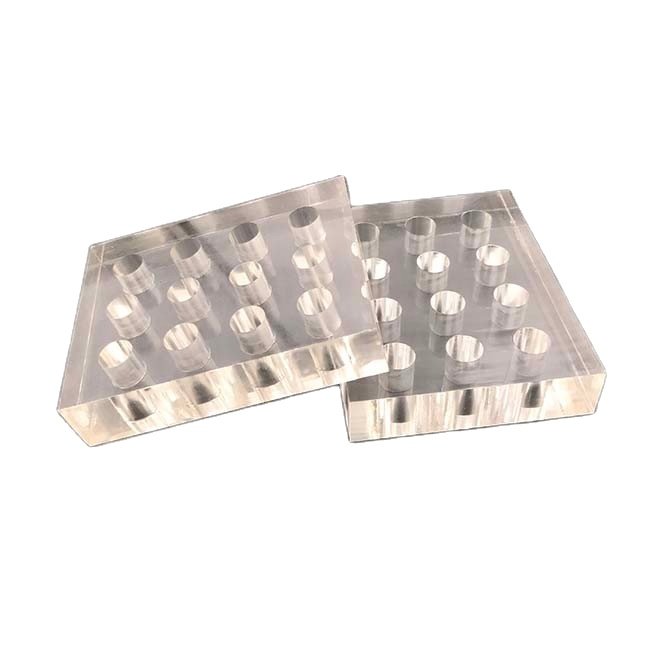

PMMA (Acrylic)
Features: High transparency, mirror-polishable surface.
Applications: Lamp lenses, display components, flow channel windows.
Processing Tips: Use sharp tools to prevent edge chipping, flame/mechanical polishing is possible after cutting, sensitive to solvents.

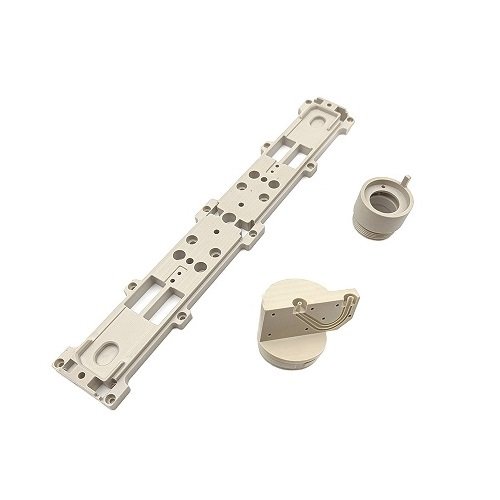

PEEK
Features: Maintains strength and chemical stability at high temperatures (~250°C), wear resistance, and sterilizability, CF/GF reinforced grades available.
Applications: Aerospace thermal insulation structures, medical devices, semiconductor jigs.
Processing Tips: Control heat and internal stresses, anneal for stabilization if necessary, high cost, optimizing tool paths and material utilization is recommended.
PTFE and Filled PTFE
Features: Ultra-low friction, chemical resistance, and anti-adhesion, pure PTFE is soft and tends to “cold flow,” making it difficult to maintain tight tolerances.
Filled grades: Glass fiber, carbon fiber, or bronze fillers significantly increase stiffness, wear resistance, and dimensional stability.
Applications: Seals, valve seats, gaskets, and corrosion-resistant sliding parts.
Processing Tips: Use slow cutting speeds, sharp tools, generous stock allowances, and freeze processing and secondary stabilization when necessary.
5. CNC Precision Machining VS. Conventional Machining
| Criteria | CNC Precision Machining | Conventional Machining |
| Accuracy & Repeatability | ±0.005–0.01 mm tolerance, identical parts across production. | ±0.05–0.1 mm tolerance, variation between parts common. |
| Efficiency & Cost | High efficiency, reduced labor, lower scrap rates. | Labor-intensive, longer cycle times, higher hidden costs. |
| Complex Geometries | Supports 5-axis, intricate shapes, consolidated setups. | Limited complexity, often requires multiple setups/fixtures. |
| Material Flexibility | Machinable in metals (Al, SS, Ti, alloys) and plastics (PEEK, PTFE). | Restricted to easier-to-machine metals, plastics less consistent. |
| Part Quality | Consistent, automated quality with CMM/in-process probing. | Dependent on operator skill, higher variation, more rework. |
| Scalability | Suitable from prototype to mass production, flexible changeovers. | Not cost-effective for scale, better suited for low-volume/manual jobs. |
6. CNC Precision Machining Applications Industries
CNC precision machining plays a core role in many demanding applications. With its stringent tolerance control, repeatable consistency, and high-quality surface finish, it ensures the reliability, safety, and stable performance of critical components.
Typical Parts: Engine blocks, pistons, connecting rods, transmission gears and valve bodies, brake system components, and mold prototypes.
Value Point: CNC machining ensures the meshing accuracy of transmission components and the airtightness and wear resistance of key engine parts.
Trends: New energy vehicle drive systems, lightweight structural parts (aluminum/magnesium alloys), radiators, and battery module housings.
Typical Parts: Turbine blades, landing gear components, fuselage/wing structures, and avionics pods.
Value Point: Precision cutting of high-temperature resistant alloys and titanium alloys ensures flight safety and a high thrust-to-weight ratio, complex structures can achieve a balance between weight reduction and performance.
Trends: 5-axis machining of composite structures, hybrid additive and subtractive processes, and ultra-lightweight, high-strength components.
Typical Parts: Surgical tools, orthopedic plates, hip/spinal implants, dental prostheses.
Value Point: CNC machining provides burr-free, mirror-quality surfaces compatible with medical titanium, stainless steel, and PEEK, meets ISO 13485 and FDA requirements.
Trends: Customized implants, minimally invasive surgical instruments, and disposable medical consumables.
Electronics and Semiconductors
Typical Parts: Heat sinks, connector housings, custom chassis, precision test fixtures, and wafer tooling.
Value Point: Tight tolerances and thermal conductivity control ensure high-speed signal and heat dissipation performance, hybrid plastic and metal processing supports rapid iteration.
Trends: 5G/6G high-frequency device housings, chip packaging carriers, and automated tooling fixtures.
Defense and Military
Typical Parts: Weapon and ammunition components, targeting/communication system components, and precision components for aviation and ships.
Value Point: Machining of high-strength alloys and corrosion-resistant materials ensures stable performance in extreme environments.
Trends: Lightweight armor components, key components for drone systems, and advanced electronic warfare equipment casings.
Comprehensive Advantages
High Precision: Supports micron-level tolerances, ensuring interchangeability and fit accuracy.
Consistency: Maintains stable part performance during mass production.
Surface Quality: Meets both functional (sealing, tribology) and aesthetic requirements.
Flexibility: Rapid transition from prototype to mass production, covering metal, plastic, and composite materials.
7. Choosing the Right CNC Precision Machining Partner
CNC Precision Machining Partner Evaluation Checklist
| Evaluation Criteria | Key Questions | Qualification Indicators |
| Technical Capabilities | Does the shop have 3/4/5-axis machines, mill-turn, EDM, grinding, etc.? | At least 3/4/5-axis machining, ability to handle both metals and plastics, equipped with precision inspection tools (CMM, etc.). |
| Can tolerance and surface finish requirements be met? | ±0.01 mm standard, ±0.003 mm high precision, Ra ≤ 1.6 μm. | |
| Are heat treatment/surface finishing services available in-house or one-stop? | ≥3 common finishing processes with unified quality control. | |
| Industry Experience | Does the supplier have relevant industry cases? | Proven projects in at least one industry: automotive, aerospace, medical, or defense. |
| Can they provide DFM (Design for Manufacturability) feedback? | Engineers can suggest design optimizations during early stages. | |
| Quality Assurance | Do they hold quality certifications? | ISO 9001 as baseline, AS9100/ISO 13485/IATF 16949 depending on industry. |
| Do they have inspection capabilities? | CMM (Coordinate Measuring Machine), SPC process control, full inspection reports. | |
| Delivery Capability | What is the prototype lead time? | 3–7 days for prototype delivery. |
| Can they support mass production? | Capacity ≥10,000 pcs/month, flexible line switching. | |
| Customer Support | How efficient is communication? | Direct engineer-to-client communication, 24–48h response time. |
| Is the quotation transparent? | Breakdown of process, materials, and labor, no hidden costs. | |
| Is after-sales support in place? | Rework/compensation mechanism, customer feedback closed within ≤5 business days. |
The key to selecting a CNC precision machining supplier lies not only in their ability to perform machining but also in their ability to stably, reliably, and scalably support the customer’s full lifecycle needs. A qualified partner should be both an executor and a collaborative engineering consultant.
8. Conclusion
CNC precision machining is more than just a manufacturing method—it is the backbone of modern industries that require accuracy, speed, and versatility. From reducing costs to improving product performance, its advantages make it indispensable for businesses seeking a competitive edge.
Working with a trusted CNC precision machining company ensures your components meet the highest standards, helping your business deliver consistent quality and reliability. Contact Us Today!
9. FAQ
Q1: How precise is CNC machining?
CNC machines can achieve tolerances as tight as ±0.003 mm, depending on the equipment and material.
Q2: What’s the difference between CNC machining and precision machining?
CNC machining automates manufacturing through computer programs, while precision machining emphasizes extremely tight tolerances and accuracy.
Q3: Which industries use CNC precision machining the most?
Industries such as aerospace, automotive, medical, electronics, and defense heavily rely on CNC precision machining.
Q4: Is CNC precision machining expensive?
While upfront costs can be higher than traditional machining, CNC precision machining reduces waste, labor costs, and errors, making it cost-effective in the long run.
