Brass CNC Machining: Process Parameters, Common Problems And Solutions

Brass has become one of the more common materials in CNC machining due to its outstanding cutting performance and good corrosion resistance. The key to obtaining high-quality brass parts is to choose sharp carbide or high-speed steel tools, use medium to high cutting speeds (300-600 m/min), maintain sufficient cooling and lubrication, and strictly control chip discharge. Based on common industry standards and practical experience, this article systematically explains the key process points of brass CNC machining, solutions to typical problems and quality control methods to help you master the complete solution at once.

01The influence of brass material properties on processing

Brass (copper-zinc alloy) is divided into α brass (Zn<37%) and α+β brass (Zn 37%-45%) according to the zinc content. Common brands such as C36000 (free-cutting brass) contain lead, so the chips are short and broken, and the machined surface has a high finish. However, lead-free brass (such as C46500) chips are in the shape of continuous strips and require stronger chip breaking measures. Understanding the specific grade of material is a prerequisite for selecting tools and parameters.

The core machining difficulty that needs to be focused on is that although brass has low cutting force, it is prone to burrs, especially at the relief surface. The chips will also wrap around the tool, and thin-walled parts will be deformed due to clamping. For example, there is a pneumatic joint manufacturer that is processing C36000 brass hexagonal rods. Small burrs often appear at the thread undercut, causing the assembly to get stuck. The solution to this problem is to change the tool to a 0.2mm chamfering tool and increase the cutting speed to 500 m/min.

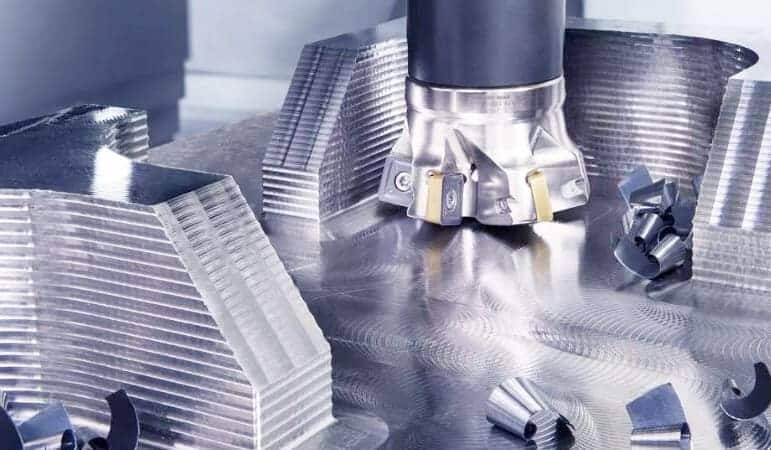

02Tool selection and geometric parameters

The sharpness of the tool determines the success or failure of brass machining. The following standard configurations are recommended:

In terms of tool materials, the first recommendation is K-type carbide, such as K10 and K20, which have the best characteristics in terms of wear resistance and chipping resistance. The use scenario of high-speed steel, that is, HSS, is for small batches or complex forming tools, but its lifespan is only one-third of that of cemented carbide.

The geometric condition of the tool is that the rake angle needs to be selected within the range of 15° to 25° (this is a positive rake angle), and the relief angle should be 8° to 12°. The cutting edge must be kept sharp and does not need to be chamfered or blunted. In addition, for every 5° increase in the rake angle of the tool, the cutting force can be reduced by about 10%. However, if the rake angle is too large, it will easily lead to insufficient edge strength, so it needs to be balanced according to the requirements of the edge angle of the part.

In terms of coating selection, it is generally not recommended to use heat-resistant coatings such as TiAlN. This is because the temperature of brass is lower when cutting. This coating will cause increased friction, and uncoated or DLC (diamond-like carbon) coating will be better.

Case study: A valve factory used TiAlN-coated blades when processing lead-free brass, and then developed a problem with built-up edges. They then replaced the blades with uncoated polished blades, and then the surface roughness was reduced from Ra 1.6 μm to Ra 0.4 μm.

03Cutting parameter recommendation table

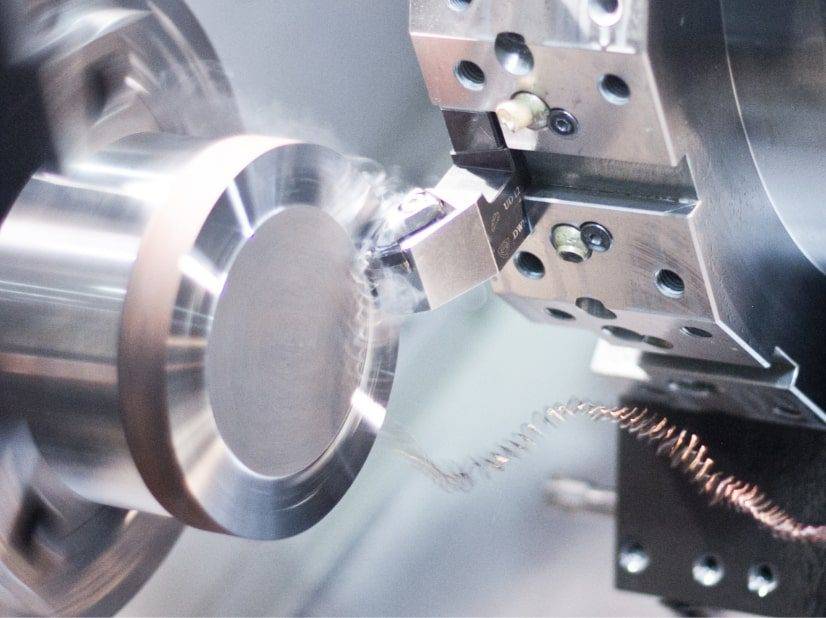

Based on the bar material with a diameter of 12mm, perform the cylindrical turning operation, and the tool overhang should be less than or equal to 2 times the diameter. On this basis, the recommended starting parameters are:

Processing type Cutting speed (m/min) Feed amount (mm/rev) Depth of cut(mm)
Rough turning (C36000) 400-600 0.15-0.25 1.0-2.5
Fine turning (C36000) 500-700 0.05-0.10 0.2-0.5
Drilling (HSS) 30-60 0.05-0.12
Tapping (M6) 5-10 m/min According to pitch

Note that the cutting speed of lead-free brass must be reduced by 20 to 30%, and high-pressure internal cooling (more than 50 bar) must be used to force chip breaking. It is suitable to choose a wide and shallow groove type for the chip breaker (like a T-shaped groove or a wave groove). The groove width is 1.5 to 2.5 mm and the depth is 0.3 to 0.5 mm, which can control the C-shaped chip length of the C36000 to 2 mm to 5 mm.

04Frequently Asked Questions and Solutions (Q/A)

Q1: What should I do if there are black spots or discoloration on the brass surface?

A: Check the concentration and pH value of the cutting fluid immediately. The concentration needs to be maintained in the range of 6% to 8%, and the pH value should be in the range of 8.5 to 9.5. Cutting fluid with too high sulfur content will cause corrosion to brass.

Q2: How to prevent the drill bit from easily breaking inside the brass workpiece?

A: Reduce the number of drill retraction cycles to one retraction every 2mm, use a high-speed steel drill bit with a 140° vertex angle, and ensure that the drill bit edge is sharp.

Q3: What is the reason why the size after finishing is suddenly larger and smaller, and the deviation is more than 0.02mm?

For A, what needs to be done is to check the thermal elongation of the spindle. Brass has a fast heat conduction speed. After 30 minutes of continuous processing, the temperature of the spindle can rise to 15 degrees Celsius. At this time, it is necessary to turn on the thermal compensation in the program, or to shut down the machine for cooling.

Q4: How to solve the problem of tap chipping or excessive torque during tapping?

Change A to, use a spiral fluted tap with a 15° helix angle, and apply a palm oil-based lubricant. Reduce the tapping speed to 3 to 5 meters per minute and increase the diameter of the bottom hole by 0.05 mm.

Q5: What should I do if the thin-walled brass sleeve deforms after clamping and the roundness is out of tolerance?

Use elastic chucks or enveloping soft claws, the clamping pressure is less than or equal to 0.3MPa, add auxiliary support rings, or use low-melting point alloy filling methods.

05Quality inspection and surface treatment

Key inspection items :

Burr height: allowed ≤0.05mm (according to ISO 13715 standard)

In terms of surface roughness, milling can achieve Ra 0.8 – 1.6μm, turning can also achieve Ra 0.8 – 1.6μm, and fine grinding can reach Ra 0.2μm.

In terms of dimensional tolerances, brass parts produced by conventional CNC machining operations can stably maintain the IT7 level. For example, for a diameter of 10mm, the tolerance is ±0.015mm.

Commonly used post-processing :

Deburring: hand scraping, thermal blast deburring (for bore intersections) or abrasive flow machining

Passivation treatment is first carried out. This treatment requires the copper salt accelerated acetate salt spray test, also known as the CASS test, to be performed in accordance with the ASTM B858 standard. After the passivation is completed, a neutral salt spray test must be carried out. The test results must be no white rust for 72 hours or more.

Polishing and electroplating: Brass can be polished directly to a mirror surface, or plated with nickel or chrome to improve wear resistance.

06Action suggestions and conclusions

Three pillars always determine the success of brass CNC machining. The first is sharp and positive rake angle tools, the second is the optimized cutting parameters according to the material grade, especially the speed, and the third is effective chip breaking and chip removal design. Any plan that deviates from these three points will result in burrs, dimensional instability, or a sharp decrease in tool life.

Specific action suggestions :

1. Verification test cutting: Before formal mass production, use test pieces of the same material batch as the parts to start parameter scanning, set the cutting speed from 300 to 600 m/min, and divide it into groups every 50 m/min, then measure the burr height and surface roughness, and finally establish the optimal window.

2. Regarding tool management, when the processing quantity is in the range of 500 to 800 pieces, or after continuous processing for 4 hours, the cutting edge must be forced to be replaced. At the same time, the tool wear pattern must be recorded, and the limit of the future tool surface wear VB is less than or equal to 0.2mm.

3. When using a cooling solution, priority should be given to the synthetic ester cutting fluid. This synthetic ester cutting fluid does not contain sulfur and chlorine additives. Its concentration must be maintained within the range of 7% plus or minus 0.5%. It must also be ensured that the cutting fluid can be sprayed directly toward the cutting area, and its flow rate must be greater than or equal to 10 liters per minute.

4. Solidify the document, write the number of the verified tool, record the parameters used during cutting, write the M code representing specific instructions in the program (just like M08 represents turning on the coolant), and then record it in the work instruction book, and let the operator execute it according to the list.

Through the above-mentioned systematically planned process design, you can firmly achieve high-efficiency and high-precision production operations of brass CNC machining, and avoid more than 90% of common quality problems. If specific parts need to be further optimized, such as deep holes, threads or extremely thin walls, then check them one by one according to the actual failure modes in the Q/A section of this article.
